POUCH TECHNOLOGY
POUCH MACHINES
Our expertise in pouch machines includes solutions that streamline your operations and respond to your packaging challenges. Our pouch machines deliver high performance solutions in various materials, pouch shapes and sizes.

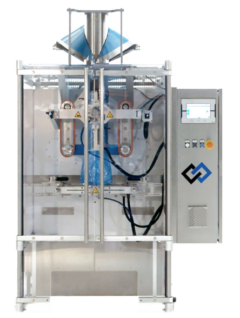

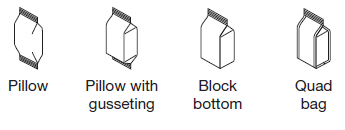

EDGE COMPACT
SPECIFICATIONS
- Speed: Up to 110 cycles/min
- Bag width: 50-380mm (min-max)
- Machine dimensions: 1,386(W), 2,152(D), 1,564mm(H)
- Packaging materials: PP/OPP, PE, paper, compostables, mono-materials, laminates / barrier film and other heat sealable materials.
- Power requirement: 400V 3 phase
- Pneumatic consumption: 1 litre / bag / min
- Pneumatic connection: 7 bar / ø8 mm

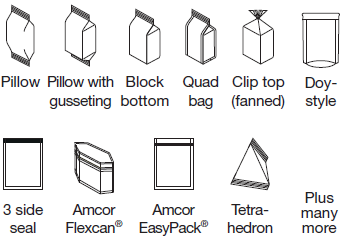

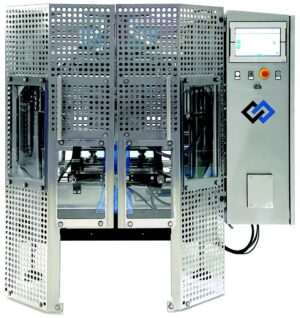

EDGE
SPECIFICATIONS
- Speed: Up to 120 cycles/min
- Bag width: 50-400mm (min-max)
- Machine dimensions: 1,702(W), 2,458(D), 2,011mm(H)
- Packaging materials: PP/OPP, PE, paper, compostables, mono-materials, laminates / barrier film and other heat sealable materials.
- Power requirement: 400V 3 phase
- Pneumatic consumption: 1 litre / bag / min
- Pneumatic connection:7 bar / ø8 mm

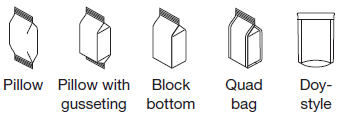

EDGE HV
SPECIFICATIONS
- Speed: Up to 200 cycles/min
- Bag width: (min-max)60-280mm
- Machine dimensions: 1,702(W), 2,458(D), 2,011mm(H)
- Packaging materials: PP/OPP, paper, compostables, mono-materials, laminates / barrier film and other heat sealable materials.
- Power requirement: 400V 3 phase
- Pneumatic consumption: 1 litre / bag / min
- Pneumatic connection: 7 bar / ø8 mm

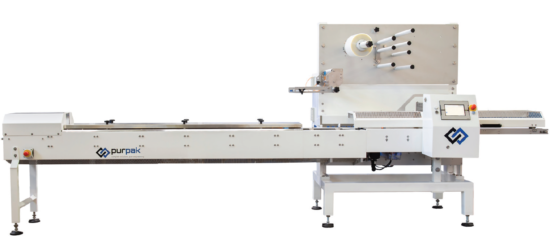

PURE FLOW COMPACT
SPECIFICATIONS
- Speed: Up to 120ppm (product/film dependent)
- Machine dimensions: 4,569mm(L) 1,395mm(W)
- Packaging materials: PP/OPP, paper, compostables, mono-materials and other heat / cold sealing materials.
- Power requirement: 400V 3 phase
- Pneumatic consumption: 2 litres / min
- Pneumatic connection: 7 bar / ø8 mm

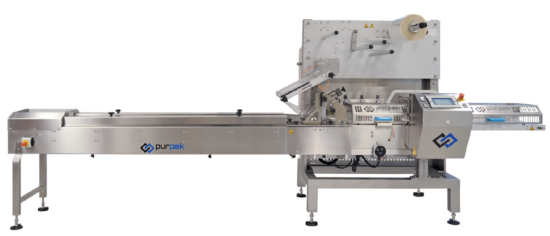

PURE FLOW
SPECIFICATIONS
- Speed: Up to 200ppm (product/film dependent)
Machine dimensions: 4,569mm(L) 1,395mm(W) - Packaging materials: PP/OPP, paper, compostables, mono-materials and other heat / cold sealing materials.
- Power requirement: 400V 3 phase
- Pneumatic consumption: 2 litres / min
- Pneumatic connection: 7 bar / ø8 mm
COMPLEMENTARY EQUIPMENT
Ask us about solutions for Dosing and Leveling systems.
LOOKING FOR A TURNKEY SOLUTION?
Let us help you develop the solution you need from concept to fully integrated system.
